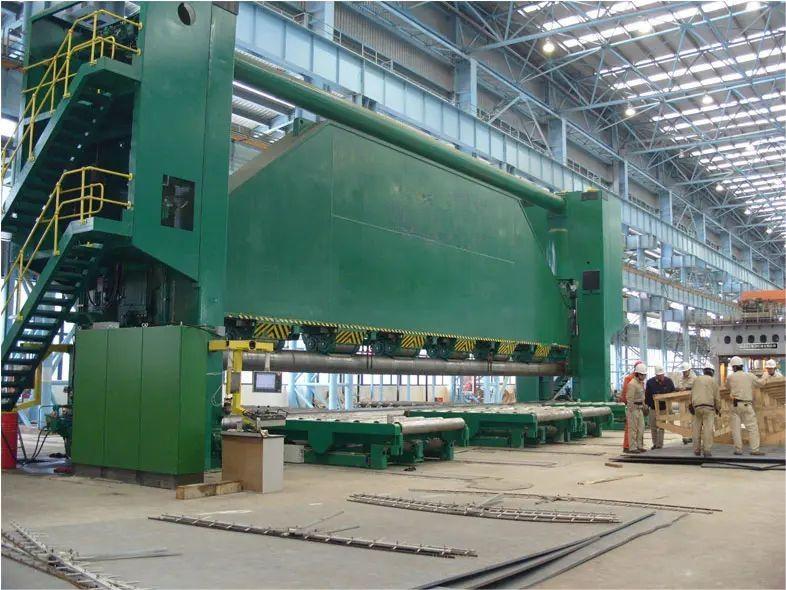

Ship Plate Bending Machine

The Specification Of Ship Plate Bending Machine

HUALU Ship Plate Bending Machine's Detailed Features:

Individual Roll Drive: The two bottom rollers are driven by separate reducers, eliminating mechanical interference. This design prolongs the working rolls' lifespan and enhances the surface quality of the workpiece.
Flexing Compensation: An adjustable backup roll device is positioned between the upper beam and upper backup rollers or the bottom beam and bottom backup rollers. This device compensates for rolling deformation and is driven by a plunger-type cylinder. By setting a compensation load based on the deformation performance curve, it ensures high straightness when processing plates of different thicknesses and widths.
Adjustable Center Distance: The machine employs a mutable center distance technique between the two bottom rollers, allowing for a wider range and higher precision in plate rolling.
Horizontal Movement: The bottom roll seat and each group of backup roll seats are connected to horizontal-moving reducers of the same specification. These reducers synchronize their movement through a universal joint. The mechanical one-way movement ensures synchronous operation of the oil cylinders, while the other way provides excellent self-locking performance.
Control System: The HUALU metal forming machine features a versatile control system capable of both rolling and bending operations. The system allows for convenient conversion between the two modes. It exhibits strong anti-interference ability, adapts well to harsh industrial environments, and offers ample room for expansion.

Notes on HUALU Ship Plate Bending Machine for Smooth Operation:
Transmission System and Drag Surface: Ensuring smoothness in the transmission system and the drag surface of the ship plate bending machine is vital for reducing power consumption and extending equipment life. Therefore, it is important to use appropriate lubricants, such as effective smooth oil and vegetable oil, to maintain the necessary smoothness.
Smoothing Method: Following the load standards of the ship plate bending machine, a box-type smoothing method is employed, and regular lubrication is performed. For the bearing and guiding surfaces of the safety operation roller, manual pressure-lubricating guns are used for smooth oiling. The hydraulic transmission device utilizes a box-type smooth lubrication system.
Smooth Oil Selection: Lithium-based smooth grease is used for the rolling bearings of each roller and the drag guides. The hydraulic transmission device employs the same type of gear oil as the hydraulic press machine's management system for smooth operation.
Advantages of Ship Plate Bending Machine:
Efficient and Easy Outer Strake Rolling: The machine excels in efficiently and effortlessly roll-bending outer strakes, making the process quick and seamless.
Adjustable Bottom Roll Center Distance: The bottom roll center distance can be easily adjusted, for example, by using lifting columns. This feature enhances the machine's flexibility and adaptability to different bending requirements.
Eccentric Bending for Minimizing Straight End Parts: The machine offers the option of eccentric bending, which helps minimize the presence of straight parts at the ends of the bent plates. This ensures smoother and more aesthetically pleasing bends.
Perfect and Precise 90º Bending: The ship plate bending machine delivers impeccable and accurate 90º bends, meeting the highest standards of precision and quality.
Easy Operation for Grooved Hatch Flange (Hem): This metal fabrication equipment is designed with user-friendly operation in mind, allowing for easy completion of grooved hatch flange (hem) tasks.

The versatility and power of HUALU’s bending machines make them suitable for a wide range of applications in the shipbuilding industry:

Precision is crucial in hull construction. Our bending machines shape high-quality plates to form durable and reliable hulls, ensuring they meet stringent industry standards.

Our machines are ideal for forming bulkheads, providing the strength and stability required in ship design. HUALU machines ensure precise bends for optimal performance.

In shipbuilding, the accuracy of deck and superstructure components is vital. Our machines produce perfectly bent plates, enhancing the structural integrity and functionality of the vessel.

HUALU’s bending machines enable the creation of custom ship parts, allowing for innovation and flexibility in ship design. This capability ensures your vessels meet specific requirements and performance goals.

HUALU’s Ship Plate Bending Machines are more than just equipment—they’re solutions designed to elevate your shipbuilding operations. With high-precision engineering, robust construction, versatile applications, and a user-friendly interface, they stand out as the ideal choice for businesses looking to achieve exceptional results. Choosing HUALU means choosing a partner committed to your success, with the expertise, technology, and support to help you reach new heights in the shipbuilding industry.

Explore the opportunities. Invest in HUALU. Discover the difference our Ship Plate Bending Machines can make for your business today.
