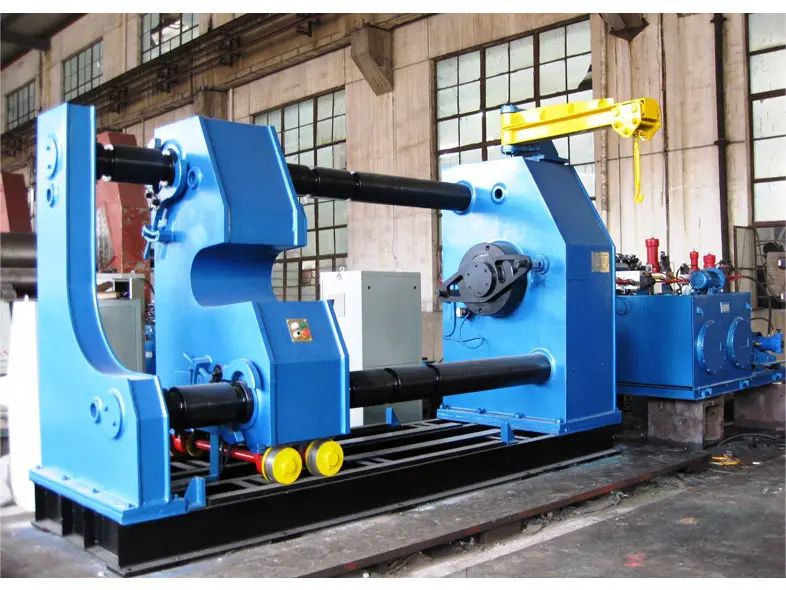

Horizontal Axle Press Machines

Safety Protection of Horizontal Press Machine:
In the event of system overvoltage, the machine is equipped with pressure relay shutdown protection and overflow protection.
An emergency stop button is installed at each of the fixed beam and control panel locations.
The mechanical, electrical, and control safety systems of the equipment comply with the relevant national standards of China or equivalent, and the safety interlock system is reliable.
The hydraulic oil is cooled by air. When the oil temperature reaches 60 °C, the horizontal hydraulic press machine will automatically trigger an alarm and shut down.

Notes Of HUALU Horizontal Hydraulic Press Machine Operation Process
1.Verify that the horizontal hydraulic press brake is leveled and the power supply is safe.
2.Check that the hydraulic oil level is adequate and the hydraulic circuit is undamaged.
3.Start the motor and ensure the rotation direction of the motor is correct.
4.Jog the hydraulic system to inspect for any leaks or abnormal sounds in the hydraulic components.
5.Run the horizontal hydraulic press system with an empty vehicle to purge any air from the system.
6.Adjust the worktable based on the motor stator, press-fit the components, and perform debugging to ensure the horizontal hydraulic press machine meets the press-fit requirements.
7.After the normal press-fitting operations, maintain the horizontal bending press machine properly.
8.This bending press machine produced by your company requires relatively high press-fitting accuracy, and the equipment is equipped with pressure and stroke measurement capabilities.
9.The progress of the press can be monitored on the screen, which provides very accurate data. In addition to the machine's programmed controls, the operator must follow strict procedures to optimize the service life of the wheel press machine.
Horizontal Hydraulic Press Machine Specification

Model	Nominal Pressure	Max. Stroke	Max gear Axle Diameter	Pressing speed	Dimension
EZY92-3150KN	3150KN	600mm	1300/350	0-4mm/s	5360x1200x2400mm

The Advantages Of Horizontal Press Machine
The operation of our horizontal press brake is simple, convenient, and highly efficient, saving time, labor, and costs.
The high precision of the press-fitting concentricity ensures a high quality rate of the produced parts.
The stroke of the horizontal hydraulic press machine can be adjusted to accommodate large-sized press-fit components, regardless of the product dimensions.

As a professional wheel press machine manufacturer, our equipment allows the pressure to be adjusted at any time. Users can calibrate the pressure system of the horizontal hydraulic press machine based on the approximate pressure required for the press-fitting operation.

Applications Across Various Industries

1. Automotive Manufacturing

In the automotive industry, horizontal axle press machines are essential for producing and assembling components. HUALU's technology provides the precision and power needed to meet stringent standards.

2. Railway and Transportation

For railway and transportation sectors, strength and accuracy are critical. HUALU's machines excel in creating components that withstand extreme conditions while maintaining structural integrity.

3. Heavy Equipment Manufacturing

Horizontal axle press machines are vital in heavy equipment manufacturing for assembling and forming robust components. HUALU’s machines ensure consistent, high-quality results.

4. Machinery and Tools Production

In machinery and tools production, precision is key. HUALU provides reliable performance, ensuring optimal assembly processes.

Real-World Success Stories

Case Study: Leading Automotive Manufacturer

A leading automotive manufacturer faced challenges in meeting high demand for precision-assembled components. They turned to HUALU for a solution. By implementing HUALU's horizontal axle press machines, the manufacturer achieved significant improvements in production speed and accuracy. The result was a 40% increase in production capacity and a notable enhancement in product quality, enabling them to meet project deadlines and maintain a competitive edge.

Elevate Your Manufacturing Operations with HUALU

Selecting the right horizontal axle press machine is crucial for your manufacturing success. HUALU's solutions offer the perfect combination of quality, innovation, and support to help you achieve outstanding results. Our commitment to excellence and customer satisfaction makes us the ideal partner for all your manufacturing needs.

Experience the HUALU difference and take your operations to new heights. Contact us today to learn more about our horizontal axle press machines and how they can transform your production process.
